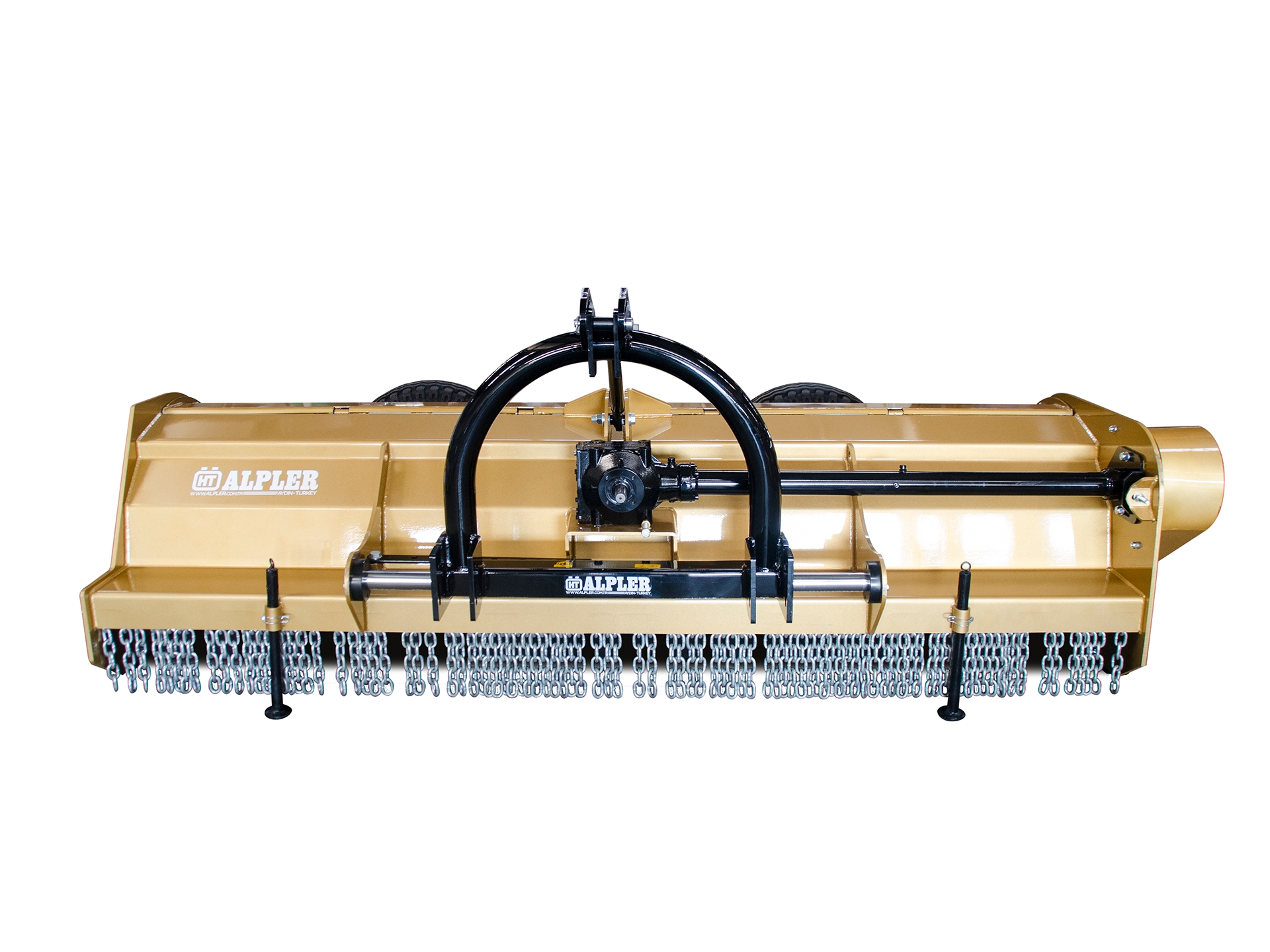

Flail Mower
Price: from £ 3,015
- It has durable knives operating by rotating vertically to soil surface and connected as jointed on mangles.
- It has the features of protecting cutting height, knife endurance and balance sensitivity even if the soil surface is rough by means of its adjacent sledges and mangle behind.
- It provides recycling as organic fertilizer by disintegrating scapes such as wheat, sunflower, cotton, corn, rice, tobacco and bushes, trimmed fruit tree branches and vine shoots.
- The machine has Hydraulic model providing slide by allowing control through tractor hydraulic arms of the machine on the purpose of providing usage easiness in orchards and vineyards.
| MODEL | A-FM 1400 | A-FM 1600 | A-FM 1850 | A-FM 2100 | A-FM 2400 | A-FM 2600 | A-FMH 1600 | A-FMH 1850 | A-FMH 2100 | A-FMH 2400 |
|---|---|---|---|---|---|---|---|---|---|---|
| Number of blades (pcs.) | 16 | 18 | 20 | 22 | 24 | 26 | 18 | 20 | 22 | 24 |
| Working width (mm) | 1400 | 1600 | 1850 | 2100 | 2400 | 2600 | 1600 | 1850 | 2100 | 2400 |
| Overall width (mm) | 1528 | 1782 | 2040 | 2290 | 2542 | 2796 | 1782 | 2040 | 2290 | 2542 |
| Overall length (mm) | 1275 | 1275 | 1275 | 1275 | 1275 | 1275 | 1275 | 1275 | 1275 | 1275 |
| Overall height (mm) | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 |
| P.T.O. Shaft Rotations Max. (Min-1) | 540 | 540 | 540 | 540 | 540 | 540 | 540 | 540 | 540 | 540 |
| Weight (kg) | 510 | 540 | 640 | 700 | 760 | 800 | 580 | 680 | 740 | 800 |
| Power requirement (HP) | 35 - 40 | 40 - 45 | 45 - 50 | 50 - 55 | 55 - 65 | 70 | 40 - 45 | 40 - 50 | 50 - 55 | 55 - 65 |
